Simply connected. Powerful together.
EASYLINK 868 is EBERLE’s new wireless control system, designed to make installation, control and system expansion easier than ever. Thanks to intelligent LoRa 868 MHz wireless communication, the wireless thermostat, connection strip and 1-channel switch work together seamlessly.
Don't miss the
launch of
EASYLINK 868.
Three Components. One Powerful System.
EASYLINK 868 combines proven heating control technology with an innovative wireless standard. This makes retrofitting and modernization quick and straightforward, without the need for structural modifications, while ensuring efficient and comfortable room-by-room temperature control.
The wireless thermostat and 1-channel switch feature a slim, elegant design, while the optimized connection strip system offers maximum flexibility and easy installation. EASYLINK 868 is simple to handle and install, yet powerful in both technology and design.
ATR 4500-EasyLink
ATR 4800-EasyLink
- Wall mounting with or without wall
bracket or tabletop stand - Ultra-slim design, battery-operated
(2 x AAA batteries, up to 2 years of
battery life) - Simple and fast zone management via
the display interace
EV 4K-EasyLink
EV 8K-EasyLink
- Optimized wiring
- Compact design (4-channel version: 2 cm
shorter than the previous model) - One terminal block for all applications
(heating/cooling systems)
EV 1K-EasyLink
- Surface-mounted version for electrical
heating applications (16A) - Remote sensor connection for maximum
floor temperature limiting - Compliant with the EU Ecodesign Directive
ATR 4500-EasyLink
ATR 4800-EasyLink
EV 4K-EasyLink
EV 8K-EasyLink
EV 1K-EasyLink
| Article number | 563 6000 97 600 |
| Timer (for Eco/Party Mode) | • |
| Supply voltage | 3 VDC: 2x AAA |
| Battery lifetime | Approx. 2 years |
| Temperature setting range | 5…30 °C |
| Output | Wireless via radio frequency |
| RF-range | 150 m free air 1 ceiling or 3 walls |
| Wireless communication | 868 MHz, LoRa |
| PWM cycle time | 5 … 20 min selectable |
| Hysteresis | 0.1 K or 0.5 K selectable |
| Control algorithm | PWM or ON/OFF selectable |
| Frost protection | 5 °C |
| Valve protection | Duration an timing adjustable |
| EN 50559 temp. limit | 5 min / 60 min if paired with EV 1K-EasyLink actuator |
| Setpoint range limitation | Via user menu |
| Heating / Cooling | Heating/Cooling via RF signal from actuator |
| Window open detection | Temp. drop and duration adjustable via menu |
| Parametrisation and RF commissioning | Installer menu, User menu and RF commissioning directly via thermostat display |
| Dimensions | 86 x 86 x 21 mm |
| Article number | 563 6040 98 600 |
| Timer (for Eco/Party Mode) | • |
| Auto - Weekly Program | • |
| @Home- Daily Program | • |
| Holiday Timer | • |
| Supply voltage | 3 VDC: 2x AAA |
| Battery lifetime | Approx. 2 years |
| Temperature setting range | 5…30 °C |
| Output | Wireless via radio frequency |
| RF-range | 150 m free air 1 ceiling or 3 walls |
| Wireless communication | 868 MHz, LoRa |
| PWM cycle time | 5 … 20 min selectable |
| Hysteresis | 0.1 K or 0.5 K selectable |
| Control algorithm | PWM or ON/OFF selectable |
| Frost protection | 5 °C |
| Valve protection | Duration and timing adjustable |
| EN 50559 temp. limit | 5 min / 60 min if paired with EV 1K-EasyLink actuator |
| Setpoint range limitation | Via user menu |
| Heating / Cooling | Heating/Cooling via RF signal from actuator |
| Window open detection | Temp. drop and duration adjustable via menu |
| Parametrisation and RF commissioning | Installer menu, User menu and RF commissioning directly via thermostat display |
| Dimensions | 86 x 86 x 21 mm |
| Article number | 563 6140 56 600 |
| Supply voltage | 230 V AC, 50 Hz |
| Output | Triac |
| No of channels | 4 (2 x 4 terminals, 2 x 2 terminals) Multiple channels can be paralleled to one heating zone = one thermostat |
| Max. no of actuators / load current | 6 thermal actuators – 3 W each (18 W) |
| Actuator type | NC / NO (selectable via jumper JMP 1) |
| Terminals | Push-in (max. wire cross section 2.5 mm²) |
| Wireless communication | 868 MHz, LoRa |
| PWM cycle time | 5 … 20 min selectable via thermostat |
| Hysteresis | 0.1 K or 0.5 K selectable via thermostat |
| Heating / Cooling change-over input | Yes |
| Frost protection | 5 °C (via thermostat) |
| Valve protection | Duration and timing adjustable at thermostat |
| Pump control output | Yes - NO relay 2(2) A, Pump output delay ON/OFF: 2 min |
| Dew point detection | With dew sensor TS 193683 (not part of delivery scope) |
| RF pairing and commissioning | Via the user interface of the RF thermostat |
| Dimensions | 341 x 64 x 45 mm |
| Article number | 563 6180 56 600 |
| Supply voltage | 230 V AC, 50 Hz |
| Output | Triac |
| No of channels | 8 (2 x 4 terminals, 6 x 2 terminals) Multiple channels can be paralleled to one heating zone = one thermostat |
| Max. no of switchable actuators per channel/load current | 6 thermal actuators – 3 W each (18 W) |
| Actuator type | NC / NO (selectable via jumper JMP1) |
| Terminals | Push-in (max. wire cross section 2.5 mm²) |
| Wireless communication | 868 MHz, LoRa |
| PWM cycle time | 5 ... 20 min selectable via thermostat |
| Hysteresis | 0.1 K or 0.5 K selectable via thermostat |
| Heating / Cooling change-over input | Yes |
| Frost protection | 5 °C (via thermostat) |
| Valve protection | Duration and timing adjustable at thermostat |
| Pump control output | Yes - NO relay 2(2) A, Pump output delay ON/OFF: 2 min |
| Dew point detection | With dew sensor TS 193683 (not part of delivery scope) |
| RF pairing and commissioning | Via the user interface of the RF thermostat |
| Dimensions | 440 x 64 x 45 mm |
| Article number | 563 6211 56 600 |
| Supply voltage | 230 V AC, 50 Hz |
| Output | Relay |
| No of channels | 1 |
| Max. no of switchable actuators per channel/load current | 16(4) A |
| Actuator type | NC / NO (Selectable via jumper JMP 1) |
| Terminals | Push-in (max. wire cross section 2.5 mm²) |
| Wireless communication | 868 MHz, LoRa |
| PWM cycle time | 5 ... 20 min selectable via thermostat |
| Hysteresis | 0.1 K or 0.5 K selectable via thermostat |
| Frost protection | 5 °C (via thermostat) |
| EN 50559 temp. limit | Yes |
| Floor probe | F 193 720 (not part of delivery scope), for room temperature control with max. temp. limit |
| RF pairing and commissioning | Via the user interface of the RF thermostat |
| Eco design regulation 2024 1103 EU | Standby power consumption: < 0.5 W F(x) correction parameter available on request |
| Dimensions | 75 x 75 x 25.5 mm |
The communication between the room thermostat and the actuator is wireless, using the 868 MHz carrier frequency, a proven industry standard known for its reliability in both residential and industrial applications. No wall chasing or structural modifications are required during installation, making the EASYLINK 868 system an ideal solution for renovations, refurbishments, and retrofit projects.
Reliable communication
Intuitive menu navigation
Excellent range
Wireless
Easy pairing
Easy expansion
Easy and flexible installation

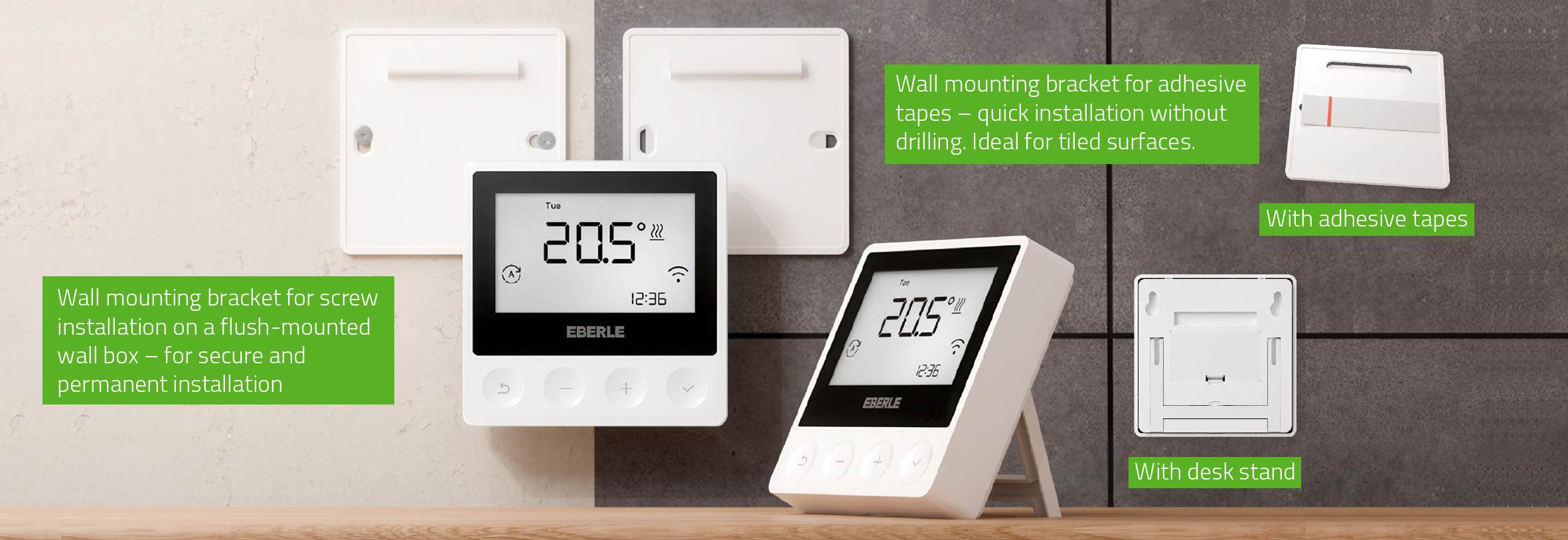

Versatile Installation - ATR 4500/4800-EasyLink
- Wandhalterung zur Befestigung mit Schrauben, auch auf der UP-Dose – für eine dauerhafte und sichere Montage
- Wandhalterung zur Befestigung mit Powertapes – schnelle Montage ohne Bohren. Ideal auf Fliesen
- Mit Standfuß
- Mit Powertapes

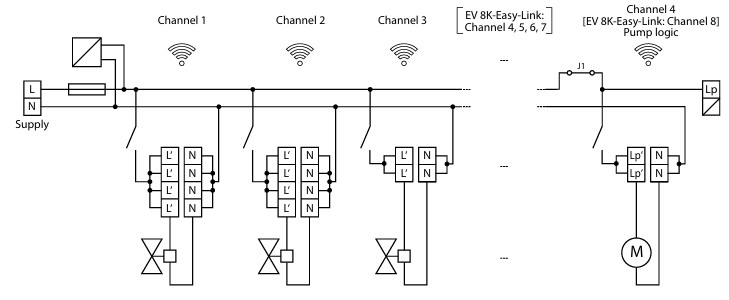

Quick Installation – EV 4K/8K-EasyLink
Schnelle Montage – EV 4K/8K-EasyLink
- Easy installation on a DIN rail (not included) or via mounting holes
- Compact 4-channel version - 2 cm shorter than previous models
- Optimized wiring for quick and easy installation
- Perfectly matched to TS+ actuators

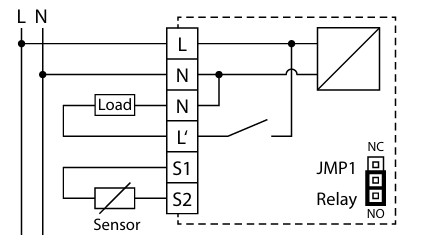

Easy Surface Mounting – EV 1K-EasyLink
Einfache Aufputzmontage – EV 1K-EasyLink
- Surface-mounted version for electric heating applications up to 16 A
- Remote sensor connection for maximum floor temperature limitation
- Easy commissioning and convenient system expansion
Suitable for all application
Bild für wassergeführte Heizung
Bild für Elektroheizung
