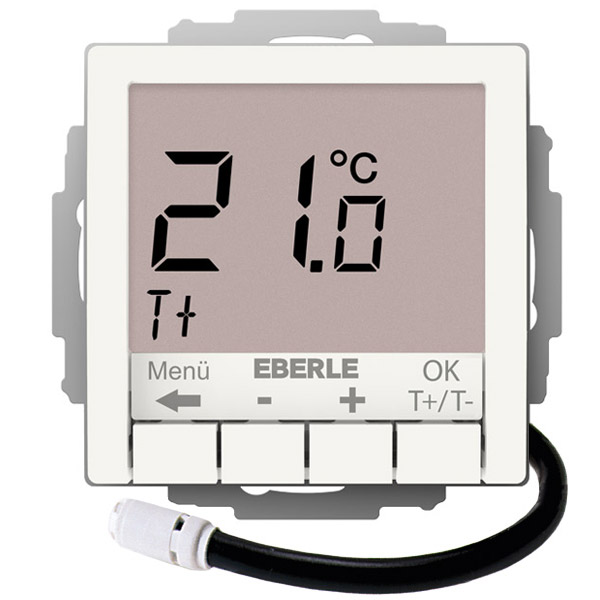

UTE 4100-F-RAL9010-G-55

Flush-mounted thermostat for controlling electrical temperature control systems, RAL9010 glossy 55x55, AC 230V, 1 NO contact 16A, white backlighting

Article number527816455504
ContactHeating
Voltage230V AC 50/60 Hz
Switching current10 mA … 16 (4) A * 230 V~
Colourpolar white (similar to RAL 9010)
Temperature range10°C … 40°C
Measurements 55 x 55 mm
TechnologyElectronic
Temperature­dropYes
Surfaceglossy
Control procedurePWM / ON/OFF (adjustable)
DisplayYes
ProgrammableNo
Remote sensorIncluded in delivery
Switch
LEDHeating / temperature setback

Flush-mounted thermostat suitable for all standard switch ranges. Polar white glossy, 55x55 cover without frame. Suitable for controlling electric floor and wall/ceiling heating. Very large display, the backlighting in white is off, briefly on at the touch of a button. Single-line text display for self-explanatory operation. Simple switching between 2 temperatures (e.g. comfort and set-back temperature). ECO input for activating a freely adjustable temperature, e.g. for night setback. Short-term timer (party) for changing the temperature by the hour. Energy consumption display (switch-on time x costs). Frost protection. Temperature display can be adapted to local conditions. Unauthorized protection. PWM or 2-point control method. With 4m remote sensor (extendable up to 100m) included. Installation in 55 mm flush-mounted box

Accesories

Additional products and accessories

F 193720

Remote sensor, NTC, -25...70°C, 4m PVC cable, diameter 7.8 mm

Cover frame 55x55 Design A - RAL9010, glz

Cover frame 55x55 format, RAL 9010 glossy
